S2PR-P3YABL Autonics Push Button

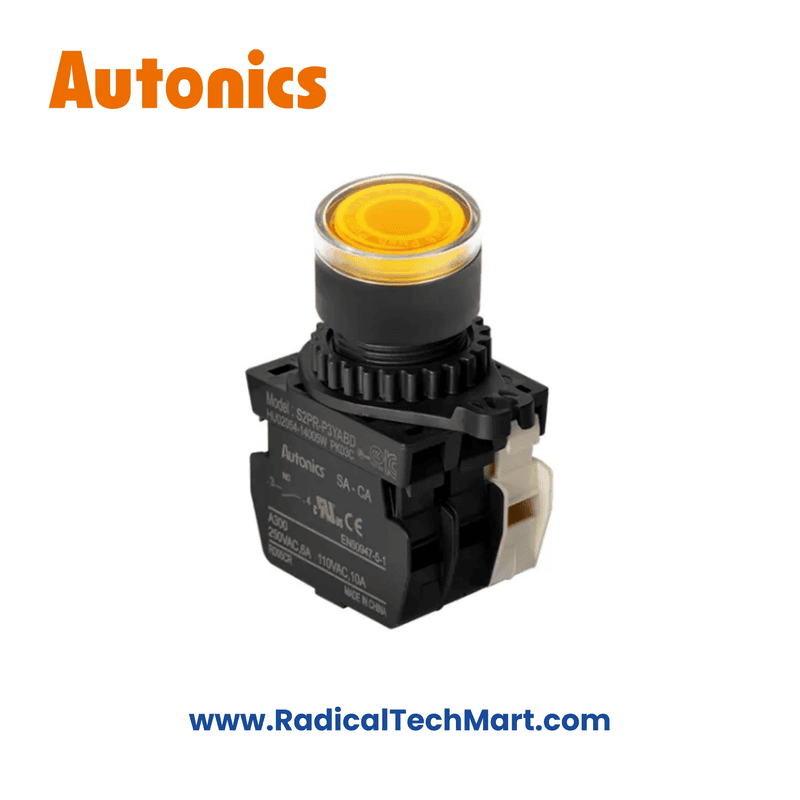

Autonics S2PR-P3YABL Illuminated Push Button Switch (Ø22 mm, Yellow, Momentary, 1NO+1NC)
The Autonics S2PR-P3YABL is a Ø22 mm illuminated yellow push button with momentary operation and 1NO+1NC contacts.
Ideal for warning, attention, and status-indication functions in industrial automation and control panels.
The Autonics S2PR-P3YABL is a Ø22 mm panel-mount illuminated push button switch designed for industrial control and automation applications. It features a yellow actuator with integrated LED illumination and a 1NO+1NC contact configuration, providing both control and high-visibility indication.
Yellow illuminated push buttons are commonly used for warning, attention, or intermediate control functions in automation panels, OEM machinery, and electrical control cabinets.
Key Features
Ø22 mm standard panel mounting
Yellow illuminated actuator for warning/attention indication
Momentary (spring-return) operation
1NO + 1NC contact configuration
Modular Autonics S2 series construction
High-visibility LED illumination
Long mechanical and electrical life
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Illuminated Push Button Switch |
| Model | S2PR-P3YABL |
| Mounting Diameter | Ø22 mm |
| Actuator Color | Yellow |
| Illumination Color | Yellow LED |
| Operation Type | Momentary |
| Contact Configuration | 1NO + 1NC |
| Rated Voltage (Contacts) | Up to 250 VAC |
| Rated Current (Contacts) | Up to 5 A |
| LED Supply Voltage | 12–24 V AC/DC or 110–220 VAC (by LED block) |
| Protection Rating | IP65 (front side) |
| Operating Temperature | -25 to +55 °C |
Applications
Industrial automation panels
Warning & attention circuits
Status and indication functions
OEM machinery
Packaging and processing machines
Electrical control cabinets
What’s in the Box?
Autonics S2PR-P3YABL Push Button Head
Contact block (1NO + 1NC)
LED block (yellow, as per model)
Mounting nut/collar
Product leaflet
FAQ
Q1. What does “P3YABL” indicate in the model number?
P3 indicates 1NO+1NC contacts, YA indicates a yellow actuator, and BL denotes the LED-illuminated type.
Q2. Is this push button momentary or maintained?
It is a momentary (spring-return) push button.
Q3. Can LED voltage be selected?
Yes. LED blocks are available in 12–24 V AC/DC and 110–220 VAC options.
Q4. Does it fit standard control panels?
Yes. It fits standard Ø22 mm panel cutouts.
Q5. Is it suitable for industrial environments?
Yes. Designed for reliable long-term operation in industrial control panels.
